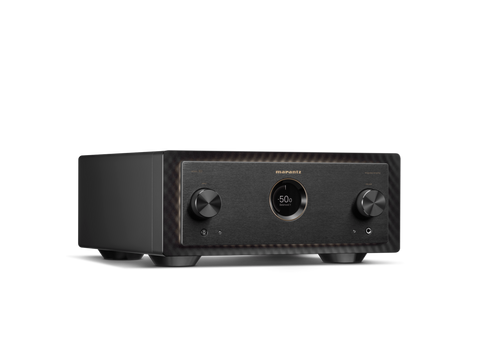

Marantz - Model 10 Reference Integrated Amplifier with 250W + SMPS

The New Reference in Amplifier Design

MODEL 10 is the most powerful, highest performing integrated amplifier Marantz has ever made. A return to the high-end that honours seven decades of audio heritage while pushing the boundaries of what's possible in modern amplification.

250 Watts of Pure Marantz

At the heart of MODEL 10 lies a newly designed dual-mono symmetrical amplifier topology delivering 250 watts per channel into 8 ohms, doubling to 500 watts into 4 ohms. This isn't off-the-shelf Purifi. Marantz engineers worked directly with Purifi to create a custom amplification module blueprint, then licensed it and manufactured the modules in-house at their Shirakawa, Japan facility using hand-selected components.

The result? The Marantz sound. Warm yet refined. Powerful yet nuanced. The kind of amplification that makes you forget about the equipment and just listen to the music.

Revolutionary Power Supply Technology

For decades, Marantz built their reputation on massive linear power supplies with heavy toroidal transformers. MODEL 10 represents a fundamental shift. The all-new Marantz SMPS (Switching Mode Power Supply) is a breakthrough in power delivery technology, custom-engineered entirely in-house at Shirakawa.

Switching mode power supplies have historically been viewed with suspicion by audiophiles. The concern? Noise. Interference. Compromised sound quality. Critics dismissed them as acceptable for subwoofers, nothing more. Marantz wouldn't put their name on that.

So they built their own. Not using standard off-the-shelf components, but with hand-selected parts chosen specifically for sonic performance. The Marantz SMPS is then paired with a large bespoke, encapsulated and isolated toroidal transformer. It's a hybrid approach that combines the efficiency and current delivery of switching technology with the refinement of traditional linear design.

The benefits are tangible. High-current capability for demanding low-impedance speakers. Superior thermal management that keeps MODEL 10 cool even when driving Wilson Audio Alexia V speakers that dip well below 4 ohms. Clean, stable power delivery across the entire frequency spectrum. And critically, the Marantz sound remains intact. Warm, musical, emotionally engaging.

This is the power supply technology Marantz will build on for the next generation of flagship components. MODEL 10 proves switching mode power supplies, done right, can deliver reference-level performance.

Built Like Nothing Else

The triple-layer copper-plated aluminium chassis weighs in at 33.7 kilograms. Heavy copper-plated panels coupled together without visible fasteners. Even the cone-like footers are copper-plated. The bottom panel sits on a hefty triple-layered copper-plated slab that virtually eliminates unwanted resonances.

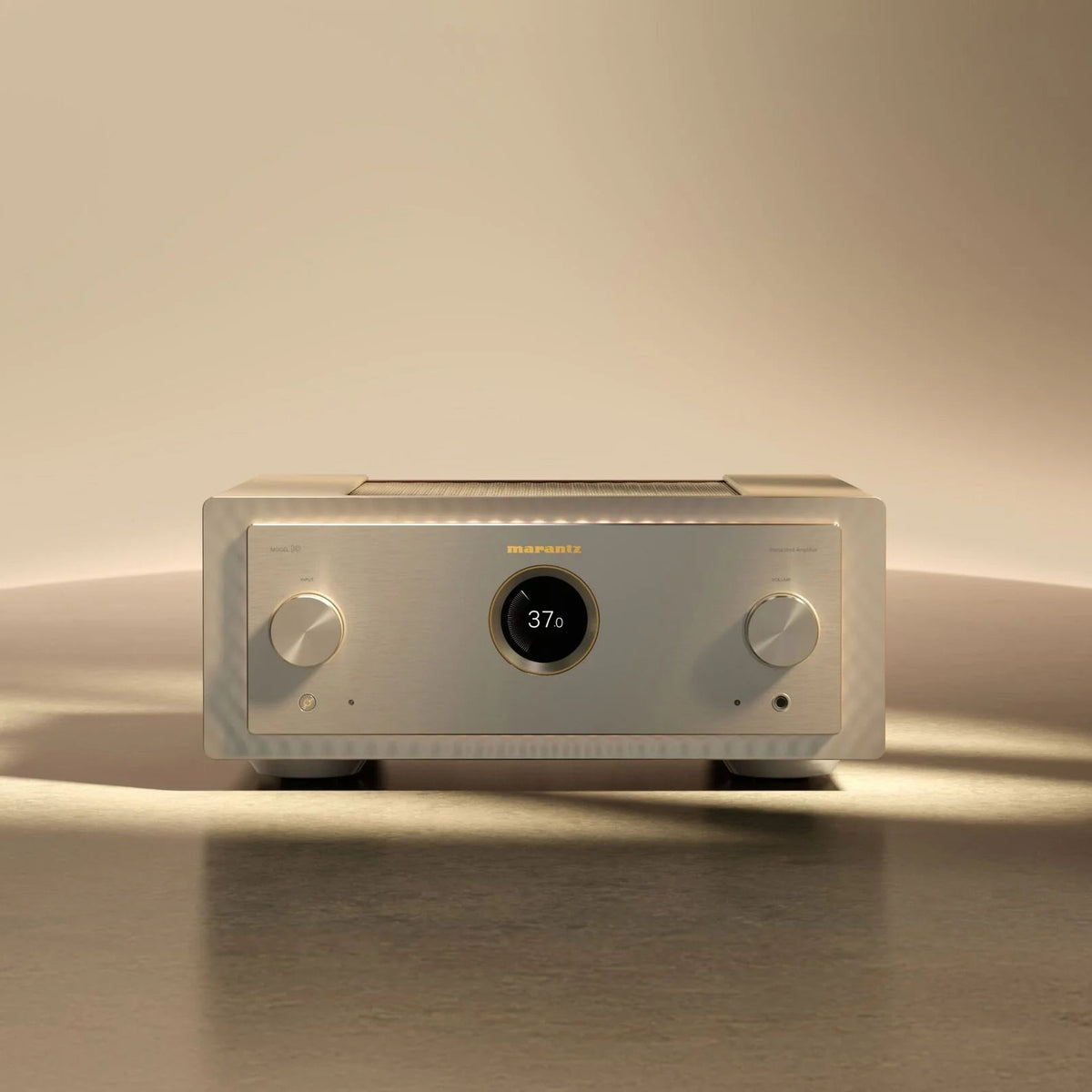

The top panel features a metal grille window providing a view into the immaculately laid out circuitry. An interior LED lighting system (dimmable) illuminates the 'Marantz' logo atop the large toroidal transformer's housing. Another bank of white LEDs provides a dimmable backlight around the brushed aluminium centre fascia panel. In person, it looks properly delicious.

The Porthole Returns

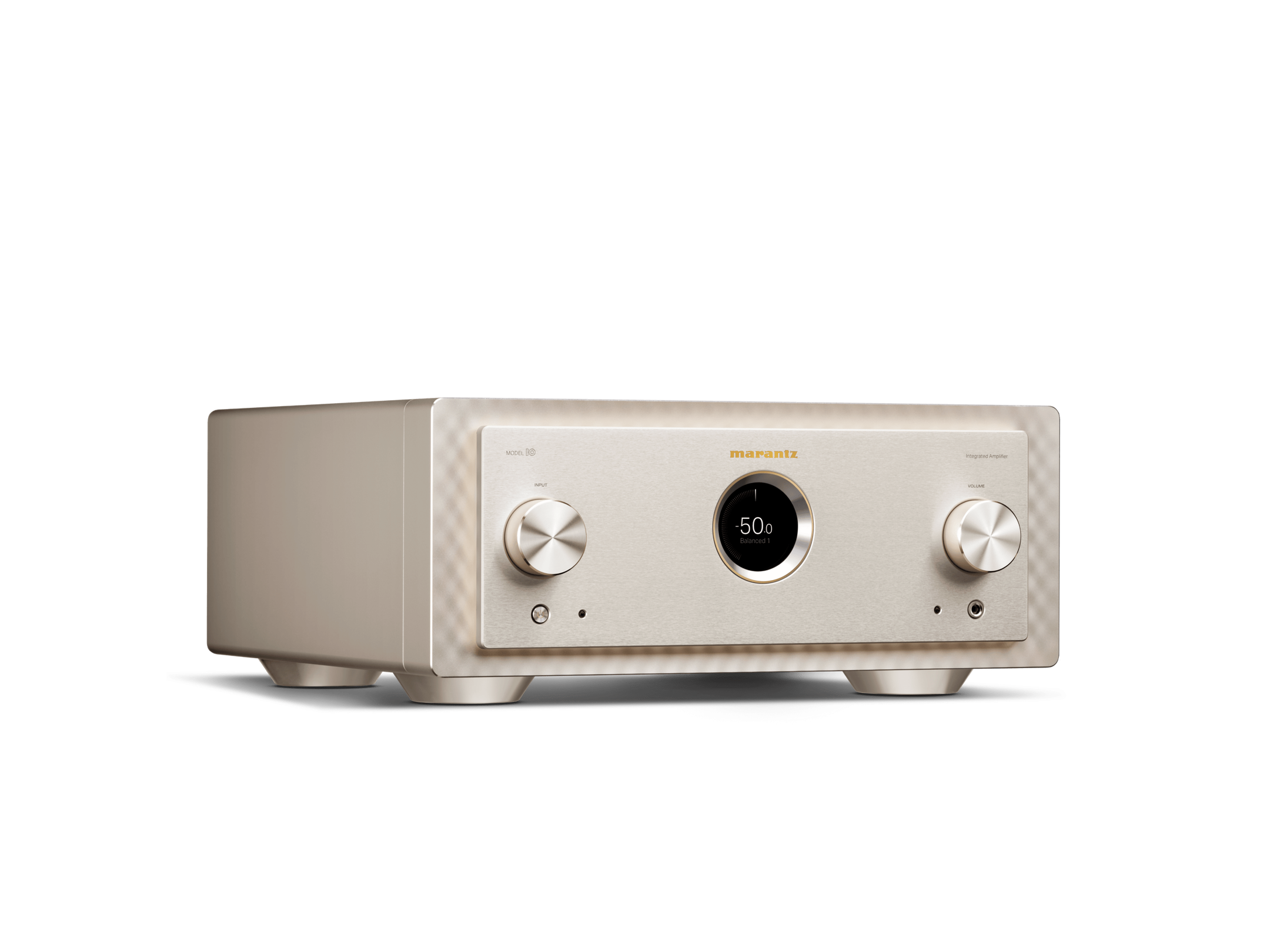

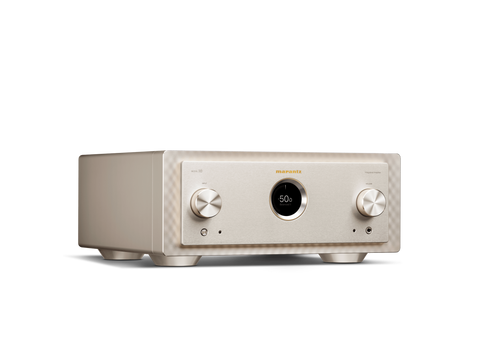

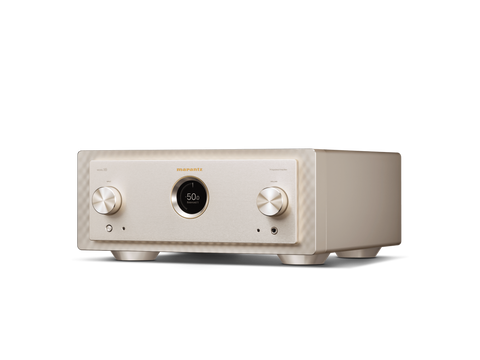

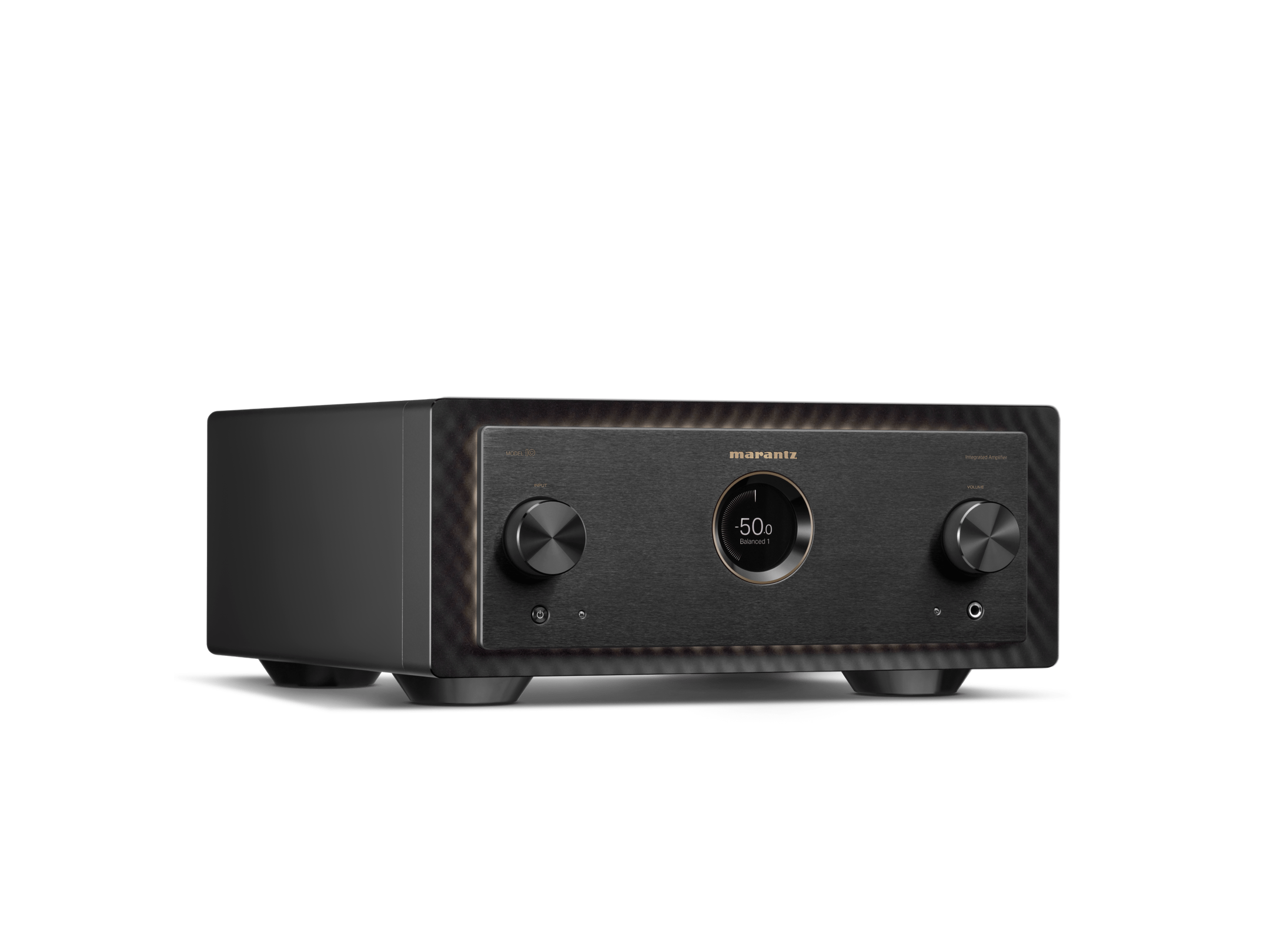

The centrally-positioned circular 'porthole' window houses a high-definition TFT colour display that animates as the amplifier powers up. The graphics show the company name, the iconic Marantz star (as employed in past premium products), settling as an informational display and then VU-style meters. Volume shows both numerical 0.5-step graduation and a circular setting line that follows the porthole's circumference.

Large rotary knobs on either side control input selection and volume. This is how a reference amplifier should feel. Solid. Precise. Built to last generations.

Comprehensive Connectivity

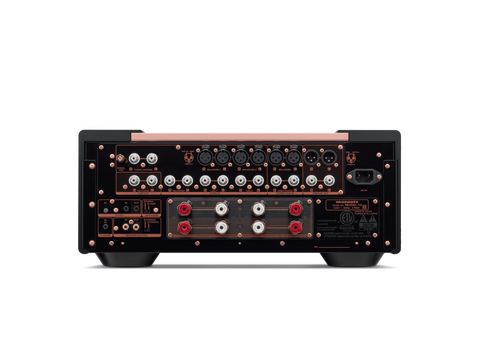

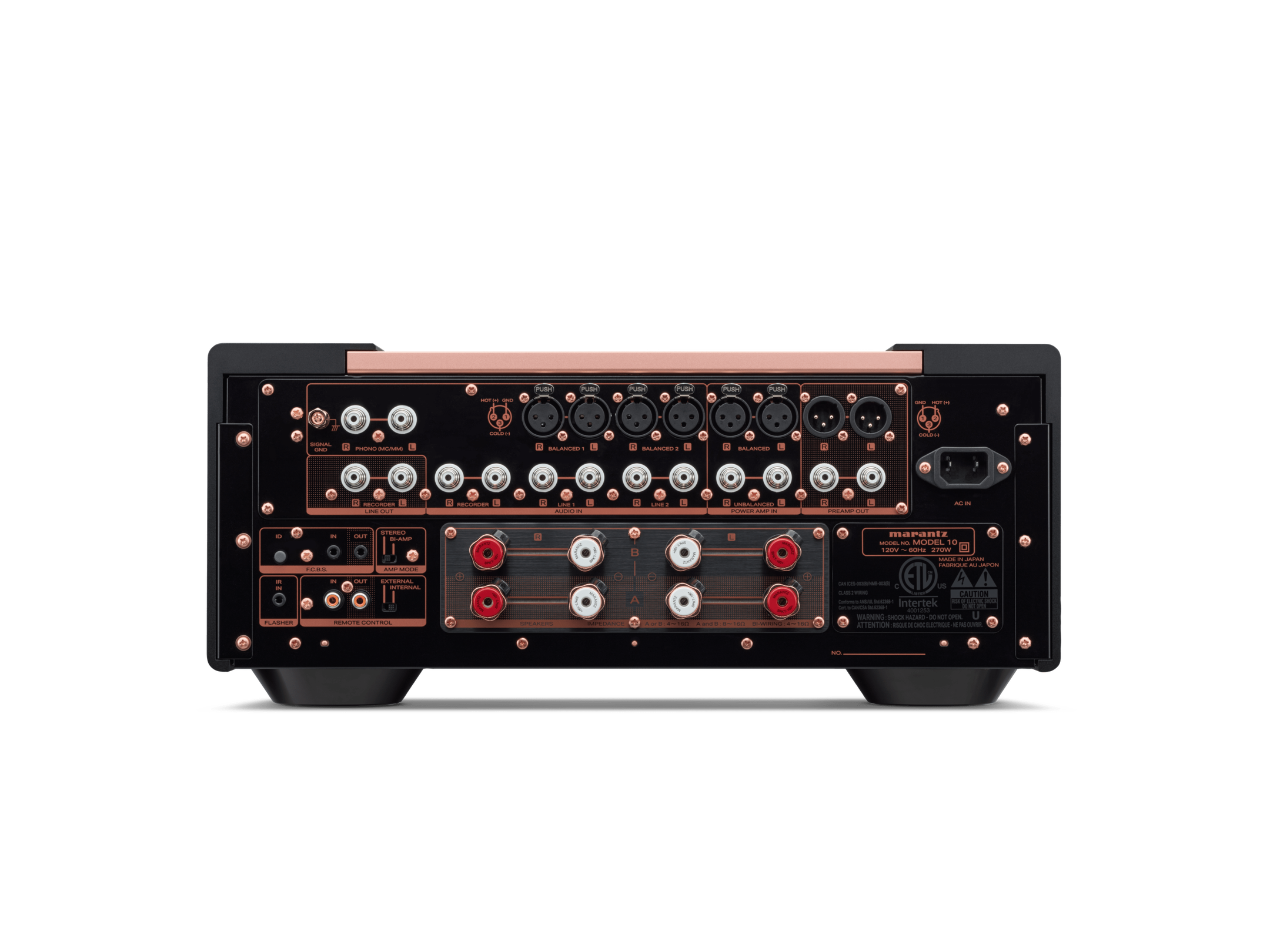

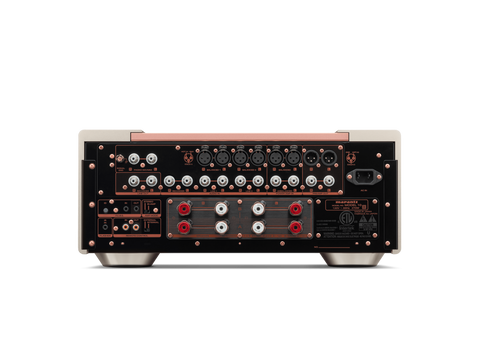

MODEL 10 is purposefully designed for amplification. No DAC. No streaming. Just pure amplification done right. But it gives you everything you need:

• Two unbalanced RCA and two balanced XLR stereo inputs
• Recorder input and output
• Power amplifier inputs and preamplifier outputs via both RCA and XLR
• Built-in Moving Magnet (MM) and Moving Coil (MC) phono stage with three MC gain/impedance settings
• 6.5mm headphone jack with dedicated amplifier circuit
• High quality copper-plated SPKT-100+ proprietary speaker binding posts (two sets for bi-wiring)
• Stereo/bi-amp switching capability

Tuned by the Marantz Sound Master

Yoshinari Ogata, Marantz Sound Master, is fully responsible for the sound of everything bearing the Marantz name. MODEL 10 features the latest discrete HDAM SA3 (Hyper Dynamic Amplifier Module) and 'Current Feedback' low Negative Feedback circuitry, all supported via newly designed multi-layer circuit boards.

Every component, every circuit path, every solder joint has been evaluated and approved by the Sound Master. This is how Marantz maintains their sonic signature across seven decades of audio engineering.

Real-World Performance

MODEL 10 delivers superbly rendered highs and truthful tonality to voices and instruments on par with the best amplification, whether valve, solid-state or hybrid. It combines a full-bodied midrange and clear highs with controlled bottom end.

The bass region walks the line between outstanding control, depth and dynamics of the best solid-state amplifiers and the full-bodied, nuanced presentation of the best high-power valve designs. Marginally leaner than a monster Class-A amplifier, yet fuller and more controlled than valve amplification.

Pace, rhythm, and timing are preserved in a lively, snappy, toe-tapping way. MODEL 10 tracks dynamic swings effortlessly while communicating the emotions inherent in the music. It tenaciously controls loudspeakers with grip, power and subtlety.

Award-Winning Excellence

MODEL 10 has been recognized by the industry's most respected authorities:

• iF Design Award 2024: "With the 10 Series Collection, Marantz establishes its proposition as a luxury brand."
• EISA Award 2025: "Setting a new benchmark, the MODEL 10 is a flagship integrated amplifier with the power to effortlessly drive virtually any loudspeaker."
• Hi-Fi News, June 2025: "Combines warmth and refinement with tangible power."

The Perfect 10 System

MODEL 10 is part of Marantz's new Reference '10' series, joining LINK 10n (network player/preamplifier/DAC) and SACD 10 (disc player/DAC). All three components are engineered and built at Marantz's Shirakawa, Japan manufacturing facility. Together, they form a complete reference system designed to work in perfect synergy.

Engineered in Japan, Built to Last

MODEL 10 is supplied with a full-function quality remote control custom designed for the '10' series products. Controls and buttons feel super solid, providing assured confidence with respect to functional precision and longevity. This is an amplifier that will be treasured by the next generation of music lovers.

For discerning audiophiles looking for simplification in terms of reducing component and interconnect cable count, MODEL 10 is a single-chassis solution that performs at the highest level.

Technical Specifications

• Power Output: 250W per channel (8Ω), 500W per channel (4Ω)
• Frequency Response: 5Hz to 60kHz (+0dB/-3dB)
• THD: 0.05% (20Hz to 20kHz)
• Damping Factor: 500 (8Ω, 20Hz to 20kHz)
• Impedance Drive: 4Ω to 16Ω
• Weight: 33.7kg

Experience sound as it was meant to be heard. Without compromise, without limitation.
